Technical Data Sheet of STKx1

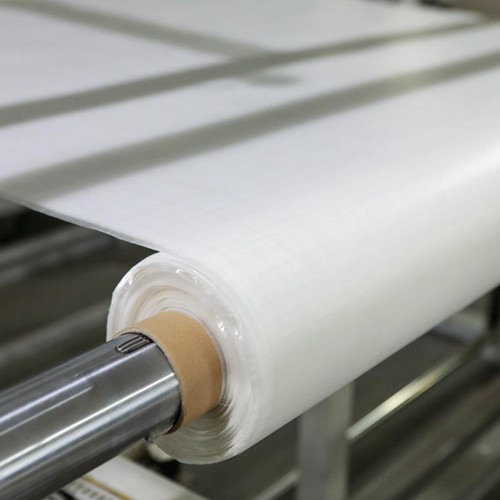

 STKx1 UD (uni-directional) fabric is popularly applied in the ballistic fields of soft armor where high performance and less weight is required. The material is composed of Ultra High Molecular Weight Polyethylene (UHMWPE) fiber and special resin matrix, which is processed by unique process and environmental. It is composed of 4 layers of uni-directional Polyethylene fiber tapes cross-plied at the structure of 0°/90°/0°/90°. Its 4-layer structure is good for reducing the trauma of heavy bullet and stopping the bullet earlier.

Specifications





Area density	Thickness	Width	Length
155 ± 5 g/m2	0.182± 0.001 mm	≥1.60 m	200 m



.All UD fabrics should be laid in the same orientation inside the ballistic panels after cut from the roll, which will keep the best ballistic performance.

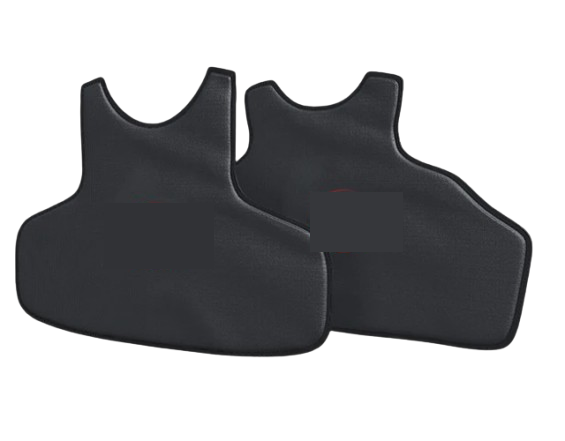

Designed for maximum comfort, concealment and freedom of movement

NIJ 0101.04 STD IIIA and NIJ 0115.00 standards

Ballistic, Knife and Spike Threat protection at various levels

Reliable protection in long-term service structure



 The goods are of TURKISH ORIGIN
